Rosslare Smartcard CSN+BLE Reader (iPhone Support)

[MattiJ]

End User Guide

1. Download the Rosslare - My BLE ID App from the Apple App Store


2. Open the App and tap on [Allow] BLE ID to use Bluetooth

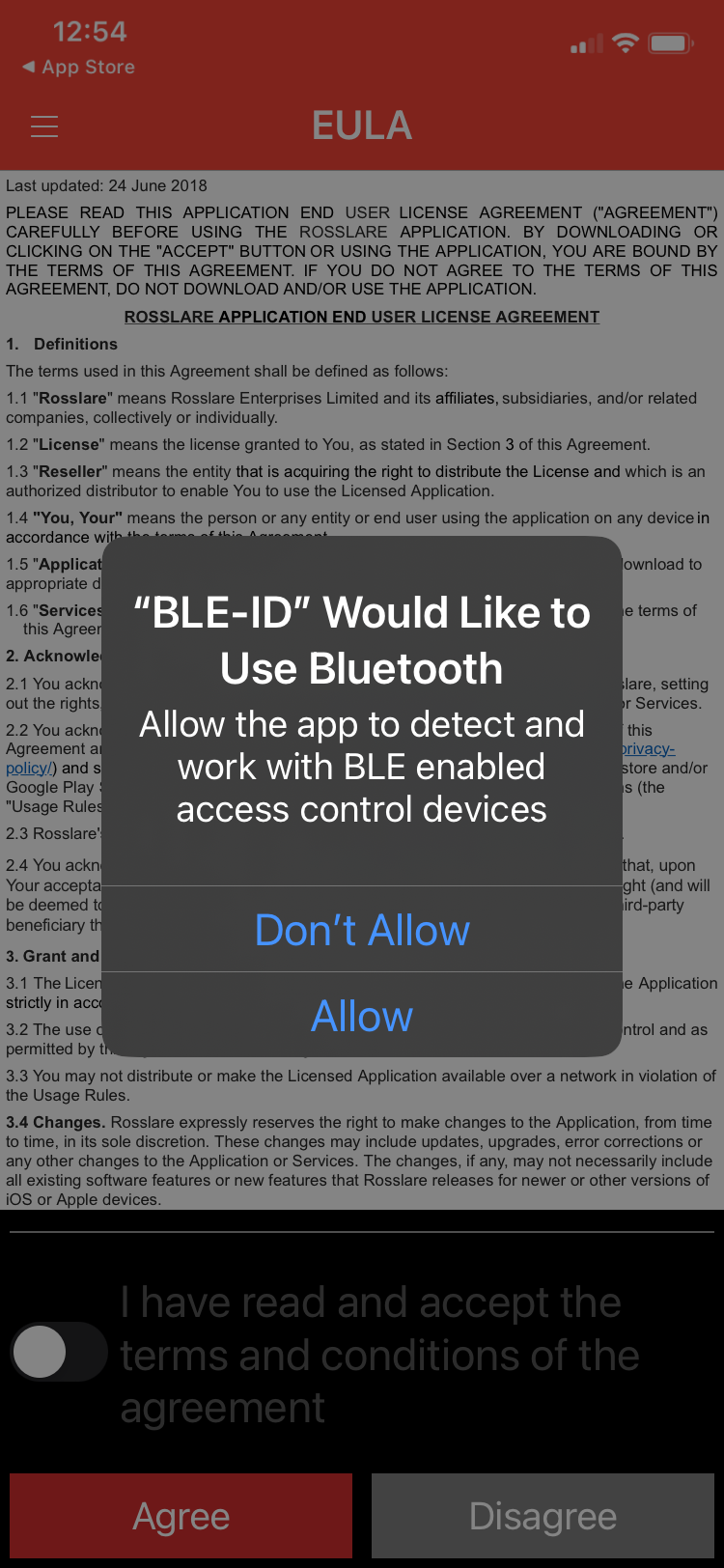

Allow BLE ID to Use Bluetooth

3. Tap on the "I have read and accept the terms and conditions of the agreement

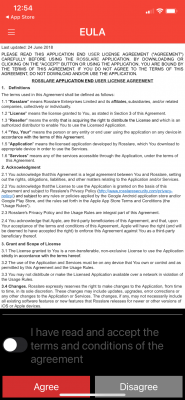

Terms and conditions

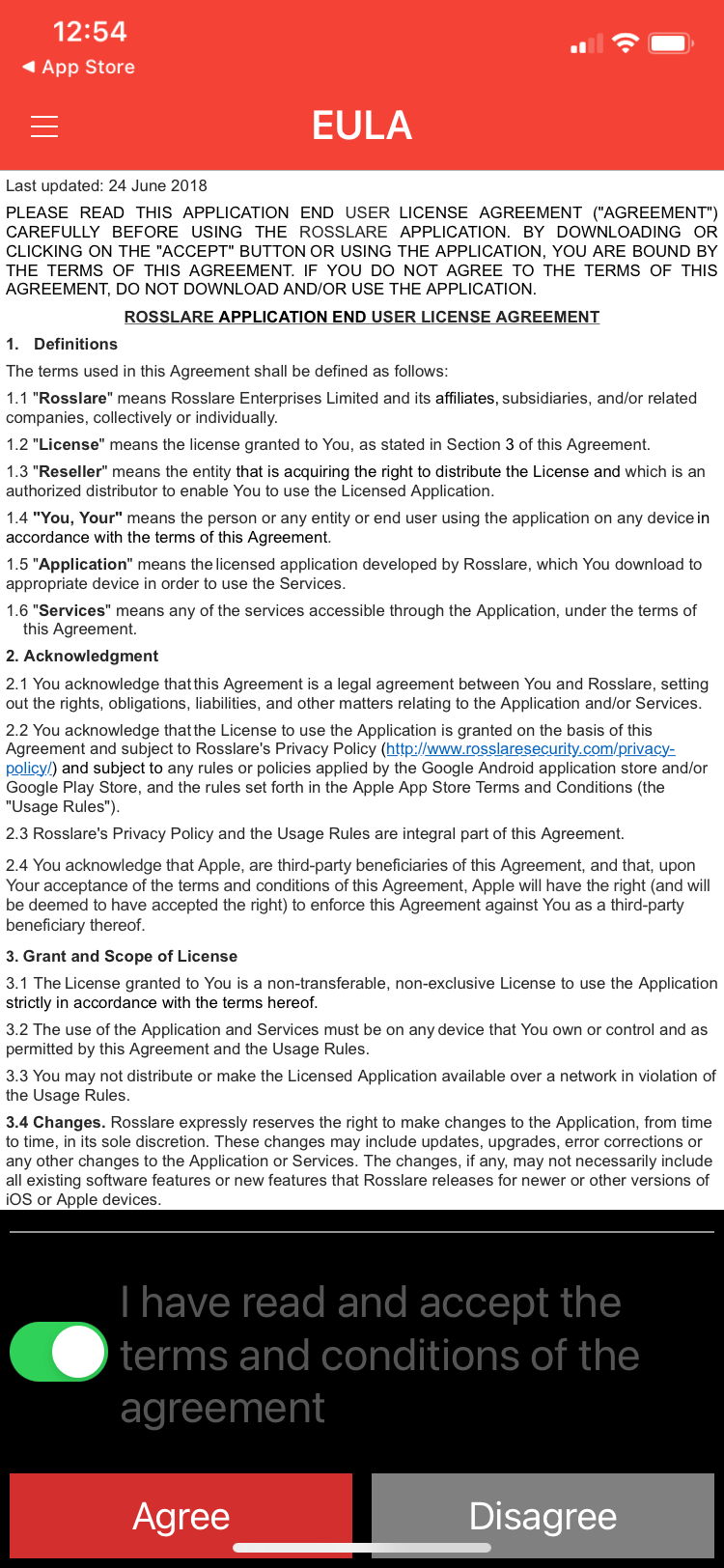

Agreed to Terms and Conditions

4. Click on the [Agree] Button to Continue

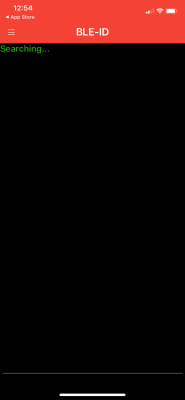

5. The BLE ID App will then begin to scan for any available door readers

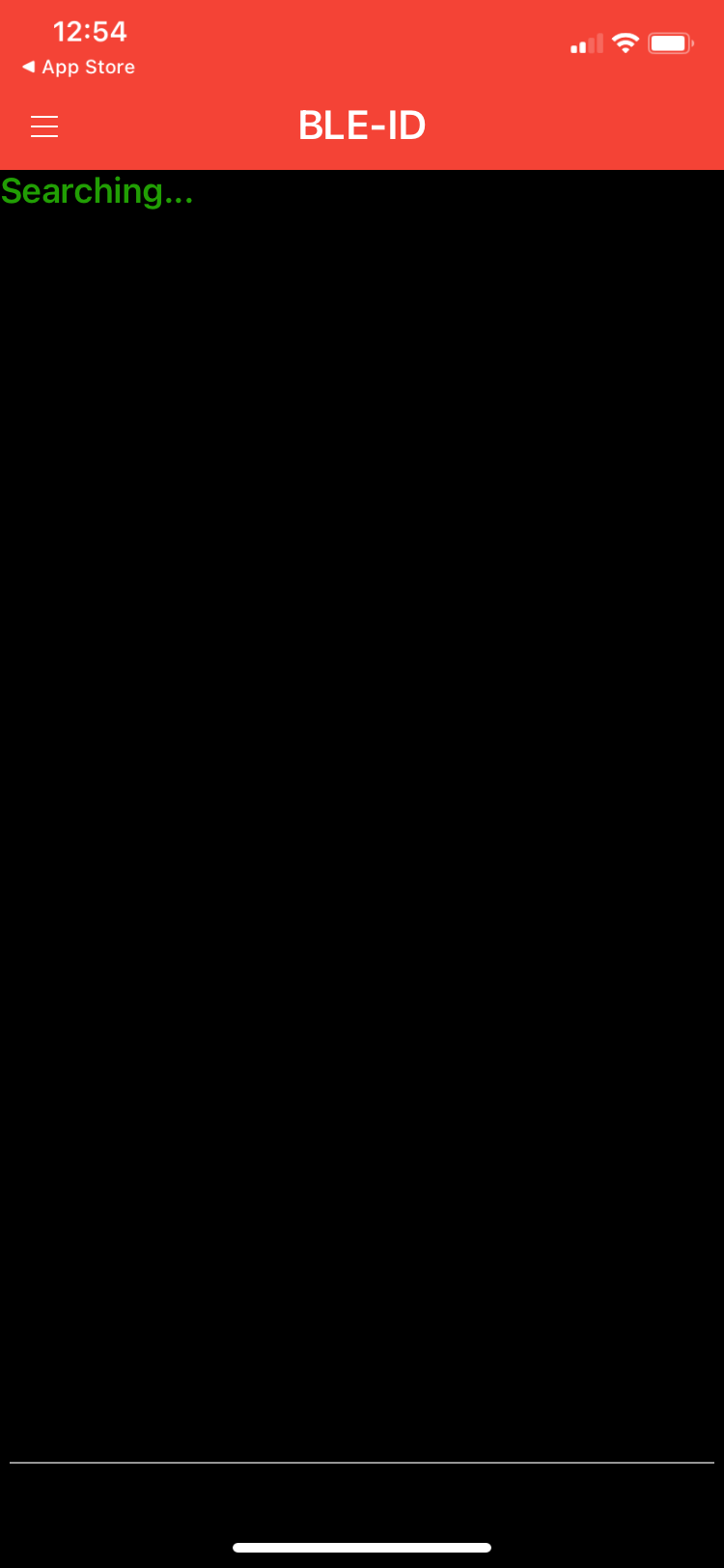

Scanning for Door Readers

6. Place the iPhone is close proximity to the Door Reader
The BLE ID App should detect the door reader and display it in the available door list
(NOTE: The door name may differ to the name displayed below)

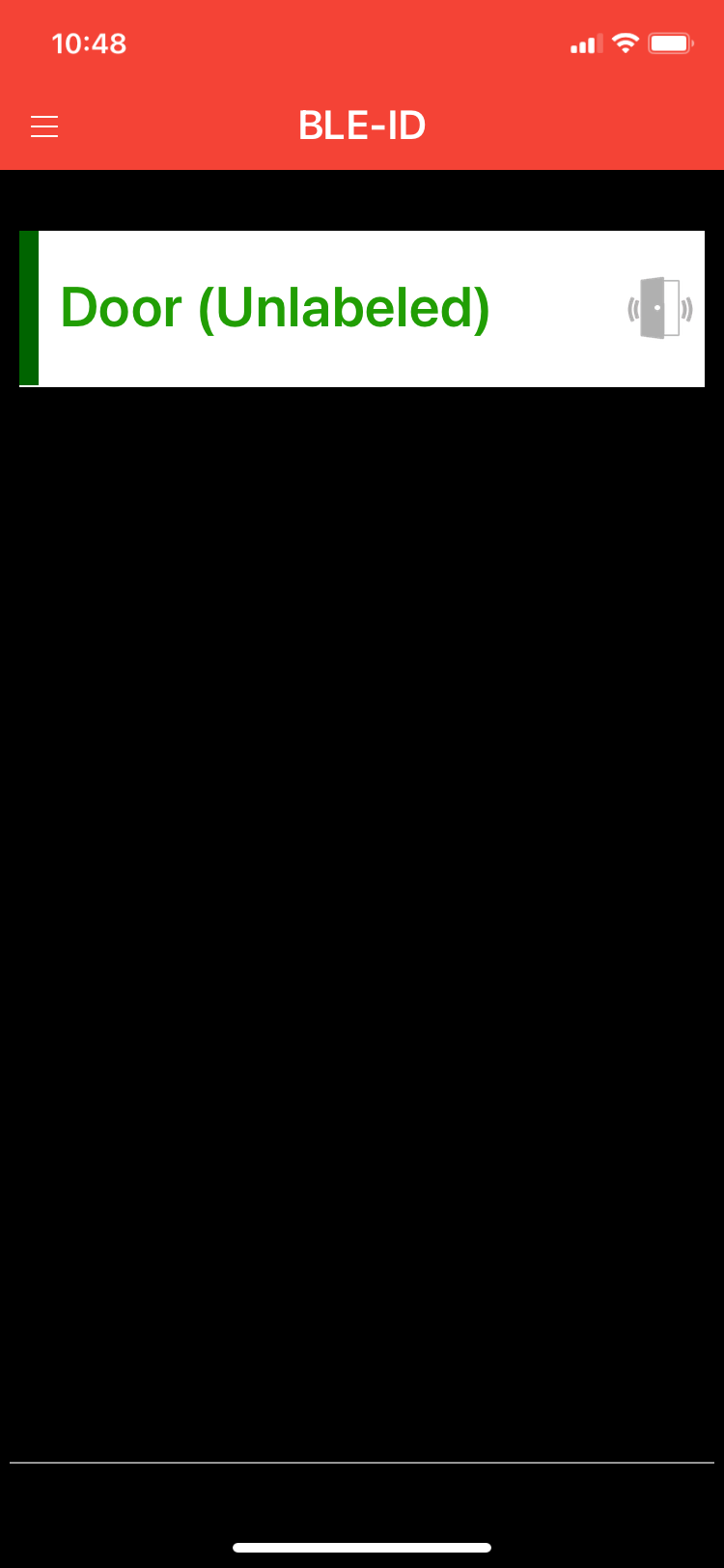

Door Reader Found

7. Tap on the Door entry to open the door
This will send your unique ID to the door reader, which will then attempt to authenticate
the passed unique ID, and grant access to the door

[MattiJ]

System Owners Guide

The following guide provides information for a Xecure system owner, on how to grant door access to a person
using the Rosslare My BLE ID Apple app, using an iPhone.

1. Download the Rosslare - My BLE ID App from the Apple App Store


2. Allow Bluetooth access to the app, and agree to the Terms and Conditions on the BLE ID App


3. Place the iPhone close to the Door reader whilst the BLE ID app is scanning for Door Readers


4. Once a Door Reader has been found, click on the Door entry to attempt to open the door.


5. The BLE ID app will then send a unique code to the door reader, which will then appear as a card swipe on the Xecure System.

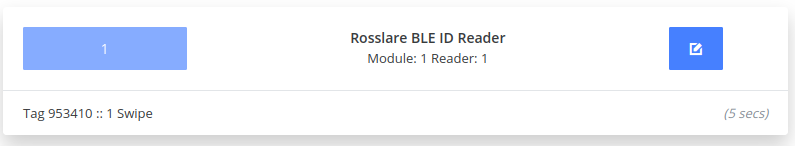

BLE ID App - Card Swipe


6. This Unique code can then be assigned to an existing User, or a new User, by clicking on the [READ] button when adding a new tag to the system

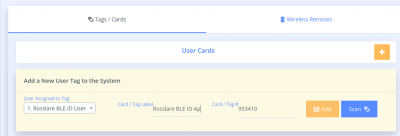

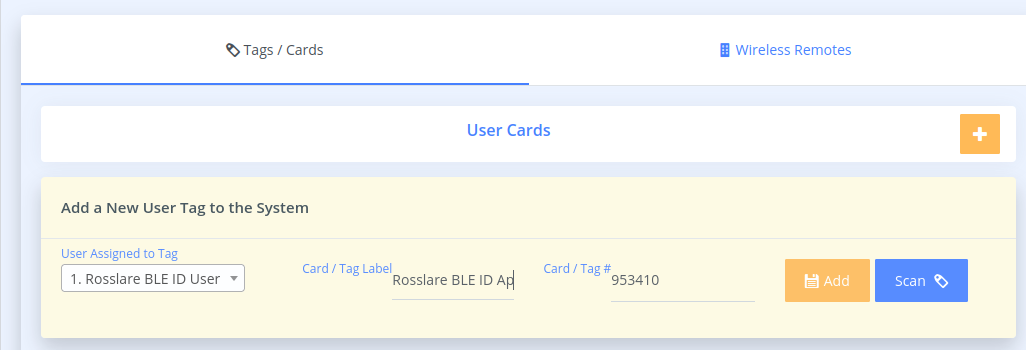

Adding a New User Tag
